Impact stone crushing machine

FOB Reference Price:Get Latest Price
$2,000.00 - $99,999.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
PF series
Report Suspicious Activity
Overview
Quick Details
Output (kg/h):
300 - 550
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops
Application:
Chemicals Processing
Condition:
New
Type:
Grinder
Product Type:
Other
Place of Origin:
Shanghai, China
Brand Name:
shanghai jianye
Voltage:
220V
Dimension(L*W*H):
as the model
Certification:
ISO9001:2000
Weight (KG):
0
Warranty:
1 Year
After-sales Service Provided:
Field maintenance and repair service, Engineers available to service machinery overseas
Key Selling Points:
High Safety Level
price:
negotiable
certificate:
ISO9001:2000
capacity:
37-260/h
warranty:
quality certificate
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard container,spare parts will be packed in wooden cases
Port
shanghai

 Stone impact crusher,stone crusher,crusher machinery:
1)high quality
2)low cost
3)easy maintenance
4)ISO9001:2000



Impact crusher:

Shanghai jianye offers impact crusher,high crushing scale,high efficiency!

Impact crusher series is optimized after adopting domestic and foreign technique.It can process granite,basalt,limestone,etc,which the granularity is not bigger than 120-300 mm and crushing compression strength is not more than 320mp.It features high crushing scale,high crushing efficiency,and it is convenient for maintenance.This cubeshaped fineness product is the first-class device used in high grade road surface,railway,water conservancy and eledtrictiy industry.

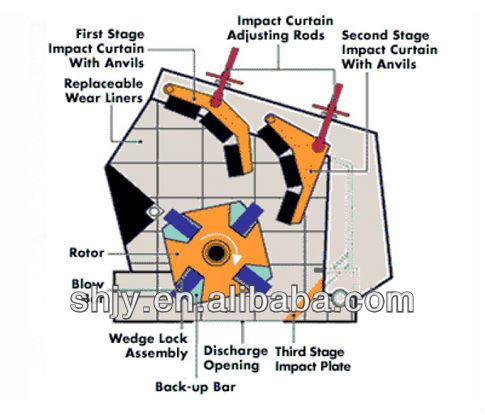

Impact Crusher Operating principle:
It is a kind of crushing equipment, using impact energy to crush materials. When materials get into the area where the board hammer plays a part, under the impact function of board hammer at a high speed, the crushed ones are thrown to the impact device above the rotor continuously. And then they are rebounded from the impact liner to the area where the board hammer plays a part, and are impacted again. The materials from large ones to small ones get into the impact cavity for being crushed repeatedly. The process is going on until the materials are crushed to the required sizes and discharged from down of the machine.

Impact Crusher Specification:

Model

Rotor Specs (mm)

Feed lenght (mm)

Max. feed size (mm)

Capacity(t/h)

Power of motor (kw)

Overall Dimensions
(mm)

PF-1007

Φ1000×700

400×730

300

37-50

30-55

2400×1560×2600

PF-1010

Φ1000×1050

400×1080

350

55-80

55-75

2440×2250×2650

PF-1210

Φ1250×1050

400×1080

350

60-120

110-132

2700×2340×2900

PF-1214

Φ1250×1400

400×1430

350

130-180

132-160

2700×2690×2890

PF-1315

Φ1300×1500

860×1520

350

150-220

180-220

3100×3280×2670

PF-1515

Φ1550×1500

900×1650

350

200-260

260-280

3400×3500×3280
